VEVOR Plate Magnetic Drill - Select Your Configuration

In stock

$163.90 USD

Sale Sold out

Bit Function Twist Drill and Core Drill Core Drill

Drilling Diameter 50 mm 40 mm

Number of Sets Single Item 1 Piece

SKU:CLZJKXZ140MM1FIR5V1

Product details

What to know before you buy

Core information, use cases, and key selling points for this item.

About this item

Product overview

VEVOR Plate Magnetic Drill - Select Your Configuration

Compare exact SKUs

SKU	Selection	Specifications	Package contents
CLZDPMHZK50MM4XYRV1	Bit Function: Twist Drill and Core Drill; Drilling Diameter: 50 mm; Number of Sets: Single Item	Net Weight (Including All Accessories): 41.9 lb / 19 kg; Maximum Load Power: 1550W; Max. Boring Diameter (Coring Drill): Φ2 in / Φ50 mm; Maximum Magnetic Force: 2922 lbf / 13000 N; Item Model Number: D8860; No-Load Speed: 0-500 rpm; Max. Boring Diameter (Twist Drill): Φ0.1-0.6 in / Φ3-16 mm; Shank Type: Weldon Shank; Max. Coring Depth: 2 in / 50 mm; Max. Boring Depth (Twist Drill): 3.9 in / 100 mm; Max. Travel Distance: 8.3 in / 210 mm
CLZJKXZ140MM1FIR5V1	Bit Function: Core Drill; Drilling Diameter: 40 mm; Number of Sets: 1 Piece	Net Weight (Including All Accessories): 24.3 lb / 11 kg; Maximum Load Power: 1300W; Max. Boring Diameter (Coring Drill): Φ1.6 in / 40 mm; Maximum Magnetic Force: 2810 lbf / 12500 N; Item Model Number: 8840; No-Load Speed: 810 rpm; Max. Boring Diameter (Twist Drill): Φ0.1-0.6 in / 3-16 mm; Shank Type: Weldon Shank; Max. Coring Depth: 2 in / 50 mm; Max. Boring Depth (Twist Drill): 3.9 in / 100 mm; Max. Travel Distance: 8.3 in / 210 mm

Details by SKU

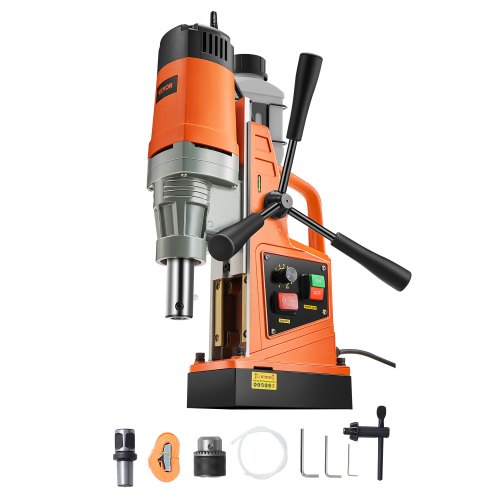

CLZDPMHZK50MM4XYRV1 - Twist Drill and Core Drill; 50 mm; Single Item

Top-level Magnet: Get ready for unstoppable power! Our electric mag drill generates exceptionally powerful driving force with its 1550W copper motor. It is capable of drilling into the toughest material at 0-500 RPM. Max. Boring Diameter (Coring Drill): Φ2 in / Φ50 mm; Max. Coring Depth: 2 in / 50 mm
Understand the Power: 2922 lbf / 13000 N of robust force is created by the electromagnetic thickened base, featuring pure iron anchors the mag drill press solidly works at any angle stably during the drilling process. Adjustable 10-speed gears achieve accurate and efficient operation according to different drilling diameter
Security and Durability: Your security comes first! That is why the combined overload protection features are in place. The cooling system features fast heat dissipation to protect operators from being hurt by instantaneous overpowering and high temperatures during drilling Besides, the premium alloy guide rail has anti-corrosion and wear resistance characteristics, significantly improving the device's service life
User-friendly design: A scale has been added to the machine's frame to help users pinpoint the distance between the drill bit and the drilled material in millimeters. Even a novice can bore accurate and neat holes. In addition, the ergonomically designed handle and 3 extended cranks provide a comfortable grip during handling and moving, saving great effort
Wide Applications: This versatile magnetic drill plays a vitally important role in home improvement, equipment installation, industrial and steel fabrication, ship and bridge building, railway manufacture, windmill & power-plant construction, and many other fields. Note: Ensure optimal use by adhering to a steel plate thickness of ≥ 0.39 in / 10 mm. Not suitable for stainless steel or cast iron. Please use a safety rope for inverted and horizontal drilling

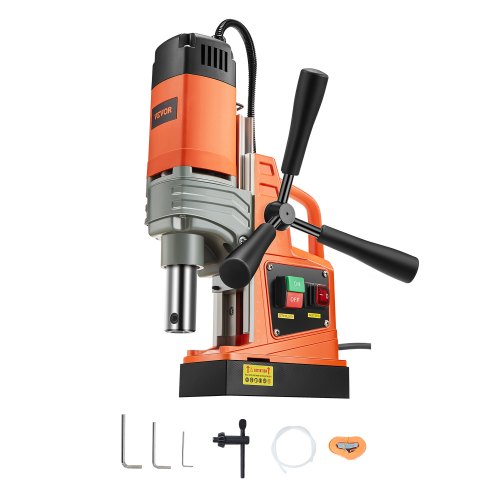

CLZJKXZ140MM1FIR5V1 - Core Drill; 40 mm; 1 Piece

Top-level Magnet: Get ready for unstoppable power! Our electric mag drill generates exceptionally powerful driving force with its 1300W copper motor. It is capable of drilling into the toughest material at 810 RPM. Max. Boring Diameter (Coring Drill): Φ1.6 in / Φ40 mm; Max. Coring Depth: 2 in / 50 mm
Understand the Power: 2810 lbf / 12500N of robust force is created by the electromagnetic thickened base, featuring pure iron anchors the mag drill press solidly works at any angle stably during the drilling process
Security and Durability: Your security comes first! That is why the combined overload protection features are in place. The cooling system features fast heat dissipation to protect operators from being hurt by instantaneous overpowering and high temperatures during drilling Besides, the premium alloy guide rail has anti-corrosion and wear resistance characteristics, significantly improving the device's service life
User-friendly design: A scale has been added to the machine's frame to help users pinpoint the distance between the drill bit and the drilled material in millimeters. Even a novice can bore accurate and neat holes. In addition, the ergonomically designed handle and 3 extended cranks provide a comfortable grip during handling and moving, saving great effort
Wide Applications: This versatile magnetic drill plays a vitally important role in home improvement, equipment installation, industrial and steel fabrication, ship and bridge building, railway manufacture, windmill & power-plant construction, and many other fields. Note: Ensure optimal use by adhering to a steel plate thickness of ≥ 0.39 in / 10 mm. Not suitable for stainless steel or cast iron. Please use a safety rope for inverted and horizontal drilling
