VEVOR Tractor PTO Shaft Assemblies - Select Your Configuration

In stock

$132.90 USD

Sale Sold out

Color Yellow Black

Maximum Length 41" / 1050 mm 1200 mm 61" / 1550mm 55" / 1400 mm 59" / 1500 mm 1100 mm

SKU:CDZT4Y8004FF00001V0

Product details

What to know before you buy

Core information, use cases, and key selling points for this item.

About this item

Product overview

VEVOR Tractor PTO Shaft Assemblies - Select Your Configuration

Compare exact SKUs

SKU	Selection	Specifications	Package contents
CDZT4Y8004FF00001V0	Color: Yellow; Maximum Length: 41" / 1050 mm	Model: T4-YⅢP800mm4.05.05B*4FFV1; Series: 4; Material: 20CrMnTi Carburized Steel + Q345 Steel + Plastic; Tractor End: 1-3/8" x 6 Spline; Implement End: 1-3/8" x 6 Spline; Compressed Length: 31.5" / 800 mm; Extended Overall Length: 41" / 1050 mm; Max Torque: 900Nm; Friction Disc Dia.: 7" / 178 mm; At 540RPM: 35hp, 26Kw, 460Nm; At 1000PRM: 53hp, 39Kw, 360Nm; Color: Yellow	1 x PTO Shaft with Slip Clutch; 1 x Locking Pin; 1 x User Manual
CDZT6B12006FFV301V0	Color: Black; Maximum Length: 1200 mm	Part Type: PTO Drive Shaft; Series: 6; Material: 20CrMnTi Carburized Steel + Q345 Steel + Plastic; Tractor End: 1-3/8" x 6 Spline; Implement End: 1-3/8" x 6 Spline; Compressed Length: 47" / 1200 mm; Extended Overall Length: 67" / 1700 mm; Max Torque: 1500Nm; Friction Disc Dia.: 5.5" / 140 mm; At 540RPM: 55hp, 40Kw, 850Nm; At 1000PRM: 83hp, 61Kw, 690Nm; Color: Black; At 1000PRM:	1 x PTO Shaft with Slip Clutch; 1 x Locking Pin; 1 x User Manual
CDZT4B11004055001V0	Color: Black; Maximum Length: 61" / 1550mm	Model: T4-BⅢP1100mm4.05.05B*4.05.A35; Part Type: PTO Drive Shaft; Series: 4; Certificate: CE Certification; Material: 20CrMnTi Carburized Steel + Q345 Steel + Plastic; Tractor End: 1-3/8" x 6 Spline; Implement End: 1-3/8" x Round End; Compressed Length: 43" / 1100mm; Extended Overall Length: 61" / 1550mm; At 540RPM: 35hp, 26Kw, 460Nm; At 1000RPM: 53hp, 39Kw, 360Nm; Color: Black	1 x PTO Shaft; 1 x User Manual
CDZT4B10004055001V0	Color: Black; Maximum Length: 55" / 1400 mm	Model: T4-BⅢP1000mm4.05.05B*4.05.A35; Part Type: PTO Drive Shaft; Series: 4; Certificate: CE Certification; Material: 20CrMnTi Carburized Steel + Q345 Steel + Plastic; Tractor End: 1-3/8" x 6 Spline End; Implement End: 1-3/8" x Round End; Compressed Length: 39" / 1000 mm; Extended Overall Length: 55" / 1400 mm; At 540RPM: 35hp, 26Kw, 460Nm; At 1000RPM: 53hp, 39Kw, 360Nm; Color: Black	1 x PTO Shaft; 1 x Locking Pin; 1 x User Manual
CDZT4B11004FF0001V0	Color: Black; Maximum Length: 59" / 1500 mm	Model: T4-BⅢP1100mm4.05.05B*4FFV1; Part Type: PTO Drive Shaft; Series: 4; Certificate: CE Certification; Material: 20CrMnTi Carburized Steel + Q345 Steel + Plastic; Tractor End: 1-3/8" x 6 Spline; Implement End: 1-3/8" x 6 Spline; Compressed Length: 43" / 1100 mm; Extended Overall Length: 59" / 1500 mm; At 540RPM: 35hp, 26Kw, 460Nm; At 1000RPM: 53hp, 39Kw, 360Nm; Color: Black	1 x PTO Shaft; 1 x Locking Pin; 1 x User Manual
CDZT5B11005FF0001V0	Color: Black; Maximum Length: 1100 mm	Model: T5-BⅢP1100mm5.05.05B*5FFV1; Part Type: PTO Drive Shaft; Series: 5; Certificate: CE Certification; Material: 20CrMnTi Carburized Steel + Q345 Steel + Plastic; Tractor End: 1-3/8" x 6 Spline; Implement End: 1-3/8" x 6 Spline; Compressed Length: 43" / 1100 mm; Extended Overall Length: 57" / 1450 mm; At 540RPM: 47hp, 35Kw, 620Nm; At 1000RPM: 75hp, 55Kw, 500Nm; Color: Black	1 x PTO Shaft; 1 x User Manual

Details by SKU

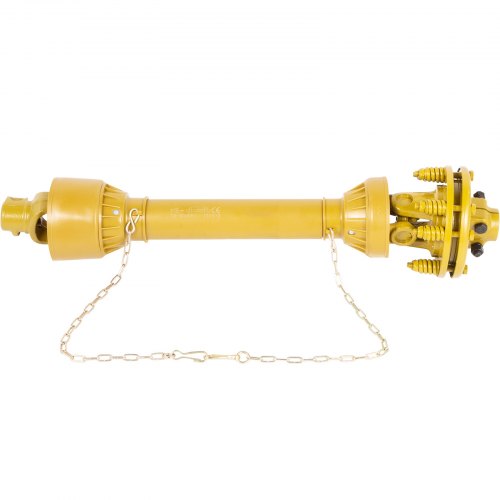

CDZT4Y8004FF00001V0 - Yellow; 41" / 1050 mm

Sturdy and Durable: This PTO shaft is a well-forged series4 driveline shaft with CE certification. It consists of a slip clutch, a solid 20CrMnTi carburized steel universal joint and a Q345 steel tube inside the shield. The PTO shaft is durable and robust when working with various agricultural machinery.

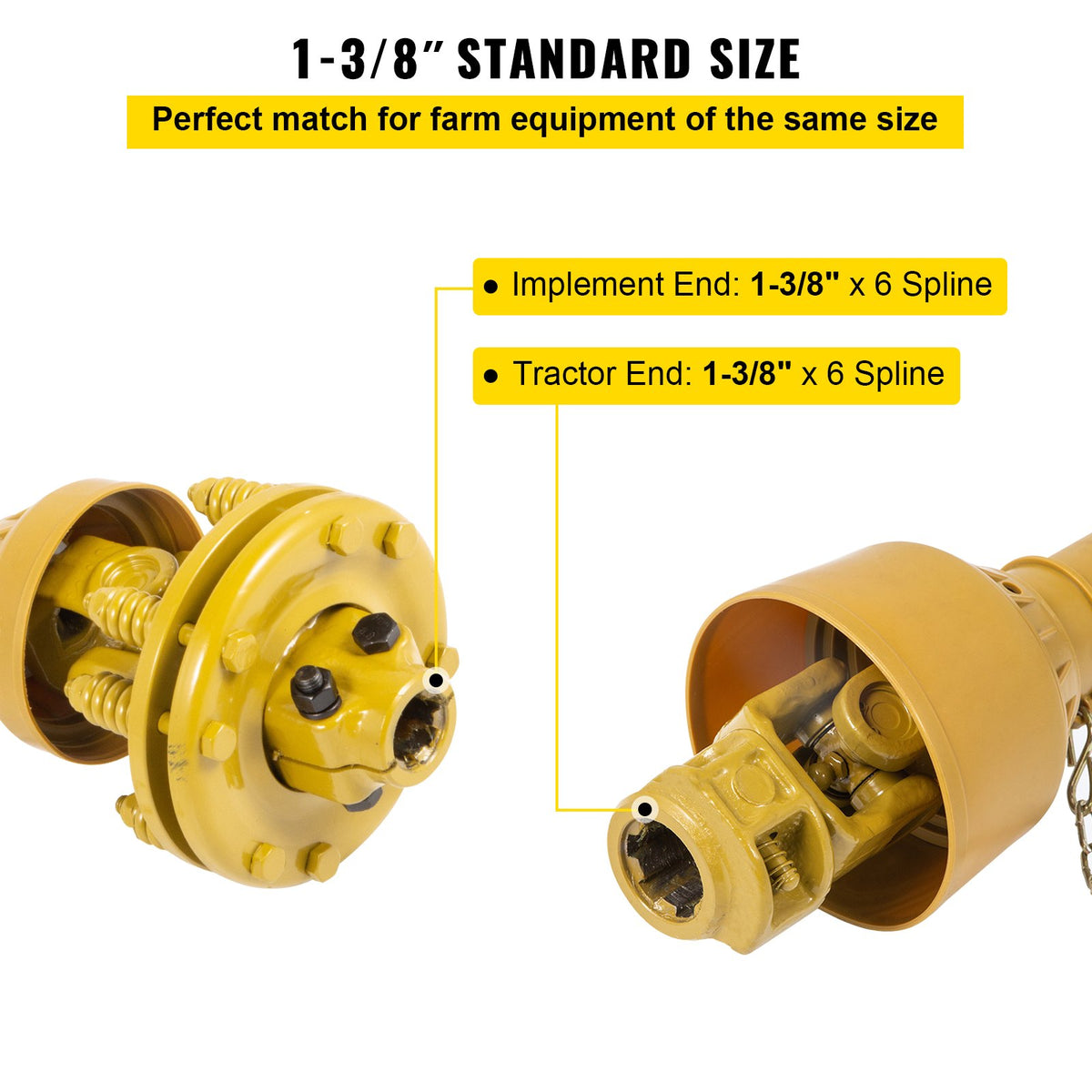

6 Spline Ends: Tractor end: 1-3/8" x 6 Spline; implement end: 1-3/8" x 6 Spline. Our brush hog PTO shaft matches perfectly with the same size and type of implements and tractors, providing magnificent driving force for your machinery. Your machinery will be running like never before.

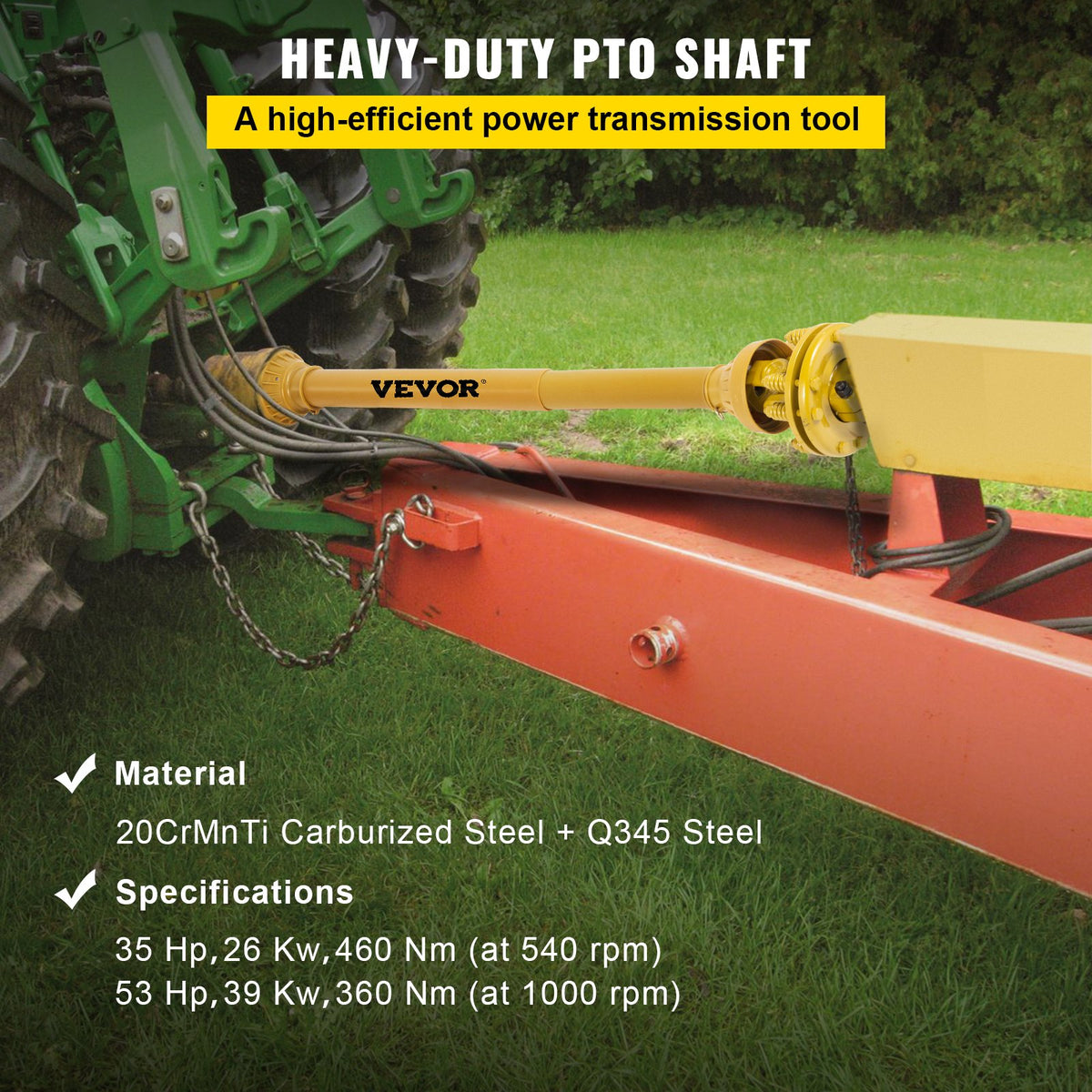

Adjustable Length: Compressed Length: 31.5"; Extended Overall Length: 41". Friction Disc Dia: 7". The tiller PTO shaft is designed with a telescoping steel tube, a universal joint, and yokes. It has 35 Hp, 26 Kw, and 460 Nm torque at 540 rpm, while at 1000 rpm features 53 Hp, 39 Kw, and 360 Nm torque. It allows two sides of the PTO drive line shaft to spin at different speeds.
Easy Assembly ＆ Safer Use: As a high-efficient power transmission tool, our PTO extender shaft can be easily assembled for direct replacement. The slip clutch works as an extra security line for the PTO shaft to prevent further damage moving up the line. The security chain and plastic shield eliminate potential dangers in the transmission process.
Wide Application: The PTO (Power Take-Off) shaft transfers the power from the tractor to the PTO powered attachment. It is widely used on mowers, rotary tillers, tractors, and more. Control the speed and power of your machine effectively. Powerful torque conversion and reliability will leave you wishing you got our PTO shaft sooner.

CDZT6B12006FFV301V0 - Black; 1200 mm

Sturdy and Durable: This PTO shaft is a well-forged series6 driveline shaft with CE certification. It consists of a slip clutch, a solid 20CrMnTi carburized steel universal joint and a Q345 steel tube inside the shield. The PTO shaft is durable and robust when working with various agricultural machinery.

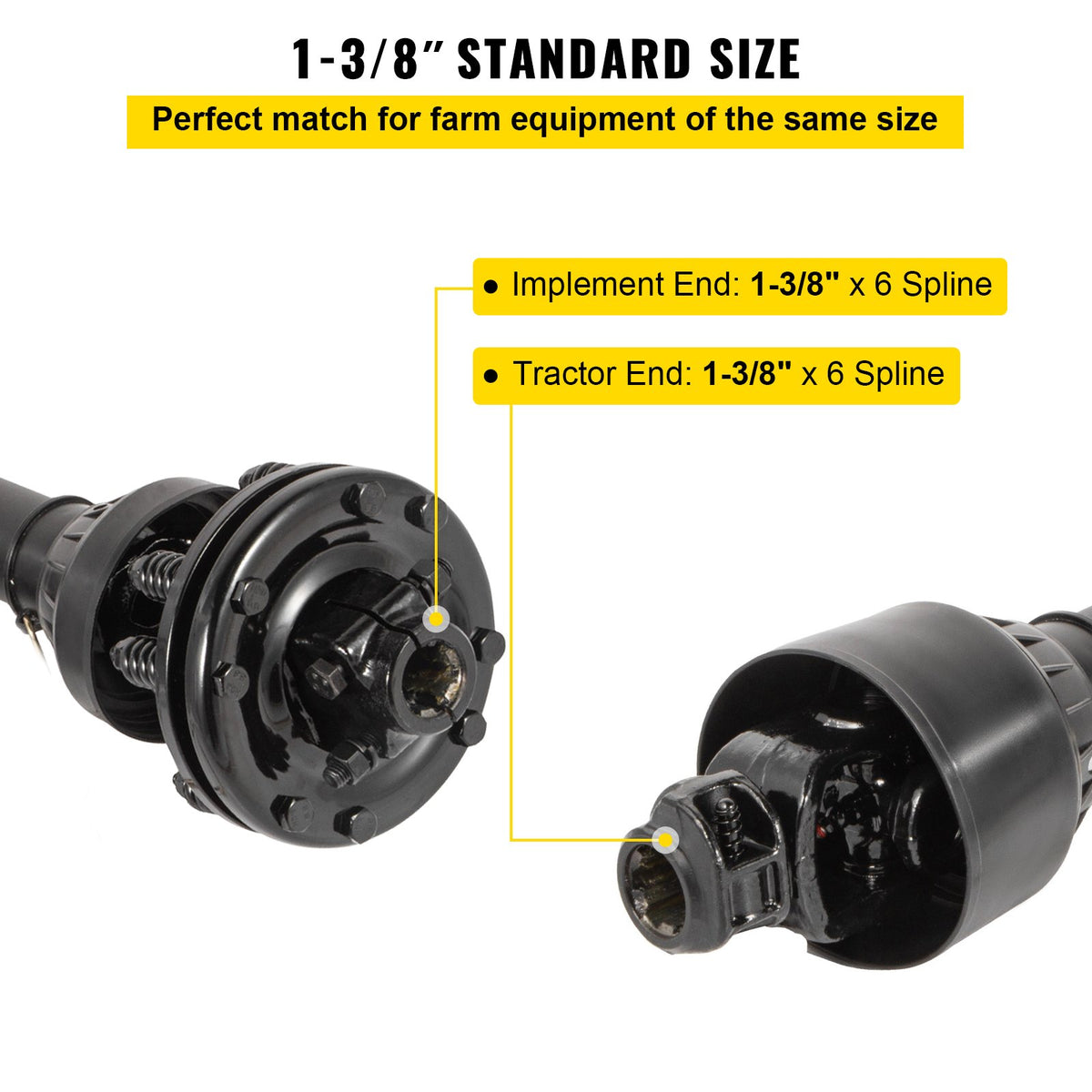

6 Spline Ends: Tractor end: 1-3/8" x 6 Spline; implement end: 1-3/8" x 6 Spline. Our brush hog PTO shaft can match perfectly with the same size and type of implements and tractors, providing magnificent driving force for your machinery. Your machinery will be running like never before.
Adjustable Length: Compressed Length: 47"; Extended Overall Length: 67". Friction Disc Dia: 5.5". The tiller PTO shaft is designed with a telescoping steel tube, a universal joint, and yokes. It has 55 hp, 40 Kw, and 850 nm torque at 540 rpm, while at 1000 rpm features 83 hp, 61 Kw, and torque 690 nm. It allows two sides of the PTO drive line shaft to spin at different speeds.
Easy Assembly＆Safer Use: As a high-efficient power transmission tool, our PTO extender shaft can be easily assembled for effortless direct replacement. The security chain and sturdy shield eliminate potential dangers in the transmission process.
Wide Application: The PTO (Power Take-Off) shaft transfers the power from the tractor to the PTO powered attachment. It is widely used on mowers, rotary tillers, tractors, and more. Control the speed and power of your machine effectively. Powerful torque conversion and reliability will leave you wishing you got our PTO shaft sooner.

CDZT4B11004055001V0 - Black; 61" / 1550mm

Sturdy and Durable: This PTO shaft is a well-forged series4 driveline shaft with CE certification. It consists of a solid 20CrMnTi carburized steel universal joint and a Q345 steel tube inside the shield. The PTO shaft is durable and robust when working with various agricultural machinery.
6 Spline ＆ Round Ends: Constructed with a 6-spline tractor end and a round implement end, our brush hog PTO shaft has a standard size of 1-3/8 inches. It can match perfectly with the same size and type of implements and tractors, providing magnificent driving force for your machinery. Your machinery will be running like never before.
Adjustable Length: Compressed Length: 43" / 1100 mm; Extended Overall Length: 61" / 1550 mm. The tiller PTO shaft is designed with a telescoping steel tube, a universal joint, and yokes. It has 35 Hp, 26 Kw, and 460 Nm torque at 540 rpm, while at 1000 rpm features 53 Hp, 39 Kw, and 360 Nm torque. It allows two sides of the PTO drive line shaft to spin at different speeds.
Easy Assembly＆Safer Use: As a high-efficient power transmission tool, our PTO extender shaft can be easily assembled for effortless direct replacement. The security chain and sturdy shield eliminate potential dangers in the transmission process.
Wide Application: The PTO (Power Take-Off) shaft transfers the power from the tractor to the PTO powered attachment. It is widely used on mowers, wood chippers, rotary tillers, rotary cutters, brush cutters, hush hug, tractors, fertilizer spreaders, and more. Control the speed and power of your machine effectively. Powerful torque conversion and reliability will leave you wishing you got our PTO shaft sooner

CDZT4B10004055001V0 - Black; 55" / 1400 mm

Sturdy and Durable: This PTO shaft is a well-forged series4 driveline shaft with CE certification. It consists of a solid 20CrMnTi carburized steel universal joint and a Q345 steel tube inside the shield. The PTO shaft is durable and robust when working with various agricultural machinery.

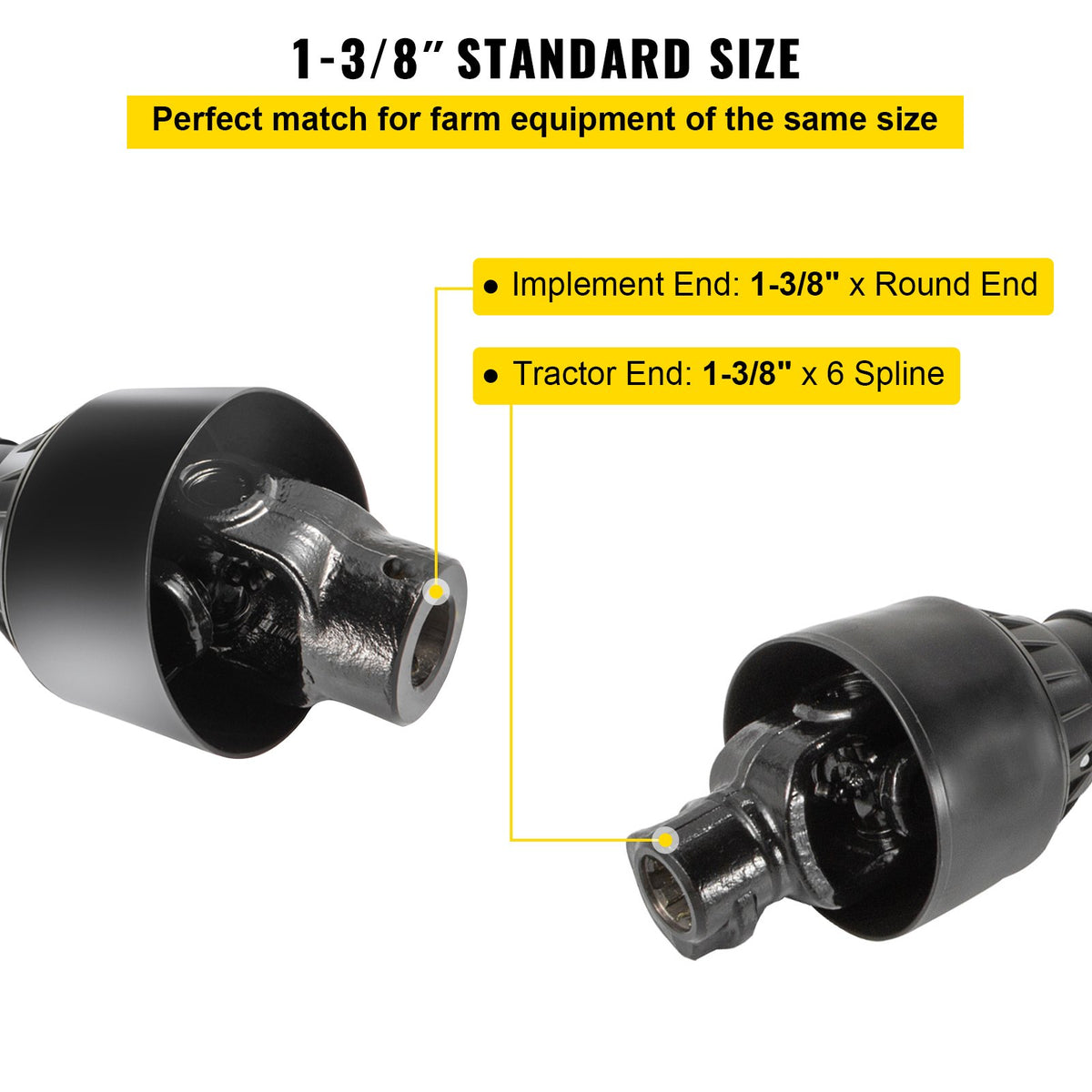

6 Spline ＆ Round Ends: Constructed with a 6-spline tractor end and a round implement end, our brush hog PTO shaft has a standard size of 1-3/8 inches. It can match perfectly with the same size and type of implements and tractors, providing magnificent driving force for your machinery. Your machinery will be running like never before.

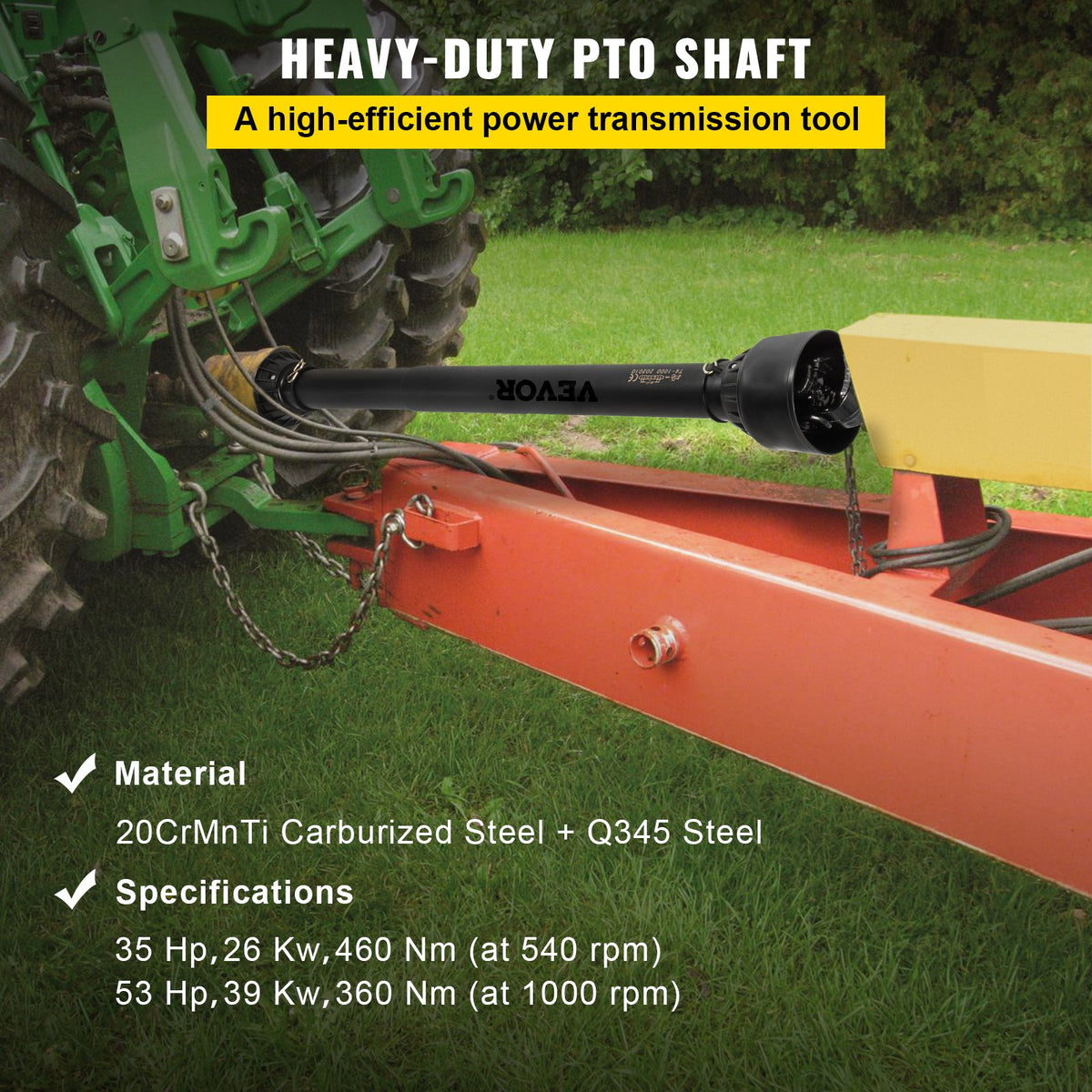

Adjustable Length: Compressed Length: 39" / 1000 mm; Extended Overall Length: 55" / 1400 mm. The tiller PTO shaft is designed with a telescoping steel tube, a universal joint, and yokes. It has 35 Hp, 26 Kw, and 460 Nm torque at 540 rpm, while at 1000 rpm features 53 Hp, 39 Kw, and 360 Nm torque. It allows two sides of the PTO drive line shaft to spin at different speeds.
Easy Assembly＆Safer Use: As a high-efficient power transmission tool, our PTO extender shaft can be easily assembled for effortless direct replacement. The security chain and sturdy shield eliminate potential dangers in the transmission process.
Wide Application: The PTO (Power Take-Off) shaft transfers the power from the tractor to the PTO powered attachment. It is widely used on mowers, wood chippers, rotary tillers, rotary cutters, brush cutters, hush hug, tractors, fertilizer spreaders, and more. Control the speed and power of your machine effectively. Powerful torque conversion and reliability will leave you wishing you got our PTO shaft sooner.

CDZT4B11004FF0001V0 - Black; 59" / 1500 mm

Sturdy and Durable: This PTO shaft is a well-forged series4 driveline shaft with CE certification. It consists of a slip clutch, a solid 20CrMnTi carburized steel universal joint and a Q345 steel tube inside the shield. The PTO shaft is durable and robust when working with various agricultural machinery.
6 Spline Ends: Tractor end: 1-3/8" x 6 Spline; implement end: 1-3/8" x 6 Spline. Our brush hog PTO shaft can match perfectly with the same size and type of implements and tractors, providing magnificent driving force for your machinery. Your machinery will be running like never before.

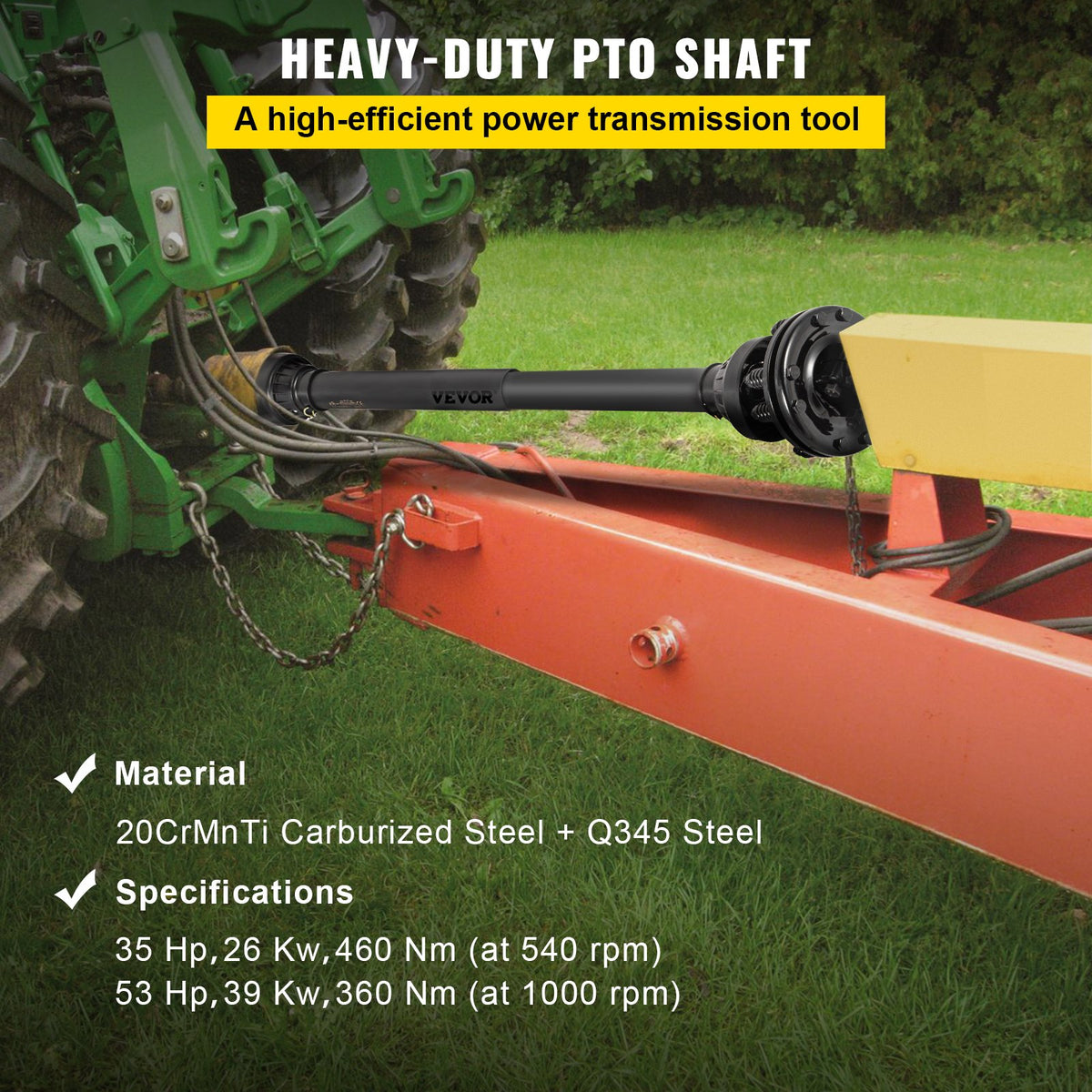

Adjustable Length: Compressed Length: 43" / 1100 mm; Extended Overall Length: 59" / 1500 mm. The tiller PTO shaft is designed with a telescoping steel tube, a universal joint, and yokes. It has 35 Hp, 26 Kw, and 460 Nm torque at 540 rpm, while at 1000 rpm features 53 Hp, 39 Kw, and 360 Nm torque. It allows two sides of the PTO drive line shaft to spin at different speeds.
Easy Assembly＆Safer Use: As a high-efficient power transmission tool, our PTO extender shaft can be easily assembled for effortless direct replacement. The security chain and sturdy shield eliminate potential dangers in the transmission process.
Wide Application: The PTO (Power Take-Off) shaft transfers the power from the tractor to the PTO powered attachment. It is widely used on mowers, rotary tillers, brush cutters, hush hug, tractors, and many more. Control the speed and power of your machine effectively. Powerful torque conversion and reliability will leave you wishing you got our PTO shaft sooner.

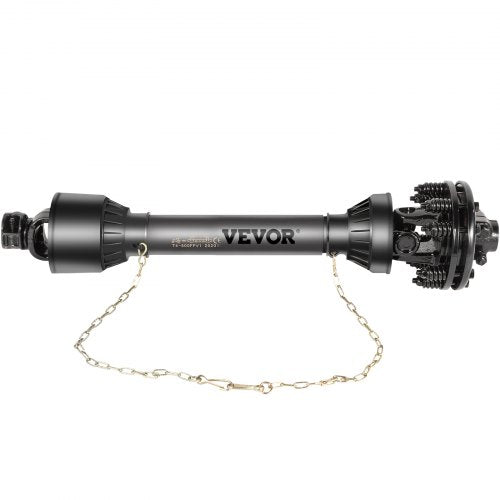

CDZT5B11005FF0001V0 - Black; 1100 mm

Sturdy and Durable: This PTO shaft is a well-forged series5 driveline shaft with CE certification. It consists of a slip clutch, a solid 20CrMnTi carburized steel universal joint and a Q345 steel tube inside the shield. The PTO shaft is durable and robust when working with various agricultural machinery.
6 Spline Ends: Tractor end: 1-3/8" x 6 Spline; implement end: 1-3/8" x 6 Spline. Our brush hog PTO shaft matches perfectly with the same size and type of implements and tractors, providing magnificent driving force for your machinery. Your machinery will be running like never before.
Adjustable Length: Compressed Length: 43"; Extended Overall Length: 57". The tiller PTO shaft is designed with a telescoping steel tube, a universal joint, and yokes. It has 47 Hp, 35 Kw, and 620 Nm torque at 540 rpm, while at 1000 rpm features 77 Hp, 55 Kw, and 500 Nm torque. It allows two sides of the PTO drive line shaft to spin at different speeds.
Easy Assembly ＆ Safer Use: As a high-efficient power transmission tool, our PTO extender shaft can be easily assembled for direct replacement. The slip clutch works as an extra security line for the PTO shaft to prevent further damage moving up the line. The security chain and plastic shield eliminate potential dangers in the transmission process.
Wide Application: The PTO (Power Take-Off) shaft transfers the power from the tractor to the PTO powered attachment. It is widely used on mowers, rotary tillers, tractors, and more. Control the speed and power of your machine effectively. Powerful torque conversion and reliability will leave you wishing you got our PTO shaft sooner.
