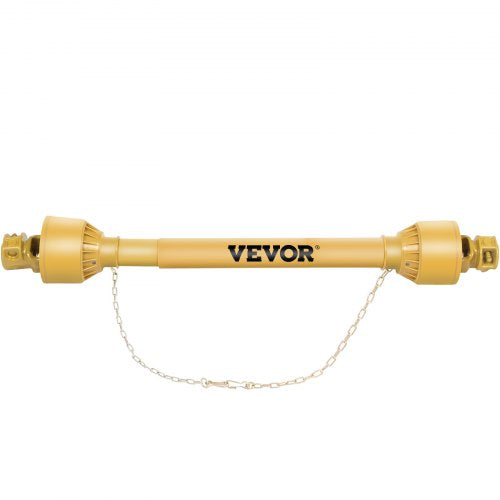

VEVOR PTO Shaft, 1-3/8” PTO Drive Shaft, 6 Spline Tractor and Implement Ends PTO Driveline Shaft, Series 4 Tractor PTO Shaft, 39”-55” Brush Hog PTO Shaft, PTO Shaft for Bush Hog/Fi
Compare exact SKUs
| SKU | Selection | Specifications | Package contents |
|---|---|---|---|
| CDZT4Y100040505B1V0 | Title: Default Title | Model: T4-YⅢP*1000mm*4.05.05B*4.05.05B; Part Type: PTO Drive Shaft; Series: 4; Certificate: CE Certification; Material: 20CrMnTi Carburized Steel + Q345 Steel + Plastic; Tractor End: 1-3/8" x 6 Spline; Implement End: 1-3/8" x 6 Spline; Compressed Length: 39" / 1000 mm; Extended Overall Length: 55" / 1400 mm; At 540RPM: 35hp, 26Kw, 460Nm; At 1000RPM: 53hp, 39Kw, 360Nm; Color: Yellow | 1 x PTO Shaft; 1 x User Manual |
Details by SKU
CDZT4Y100040505B1V0 - Default Title
- Sturdy and Durable: This PTO shaft is a well-forged series4 driveline shaft with CE certification. It consists of a solid 20CrMnTi carburized steel universal joint and a Q345 steel tube inside the shield. The PTO shaft is durable and robust when working with various agricultural machinery.

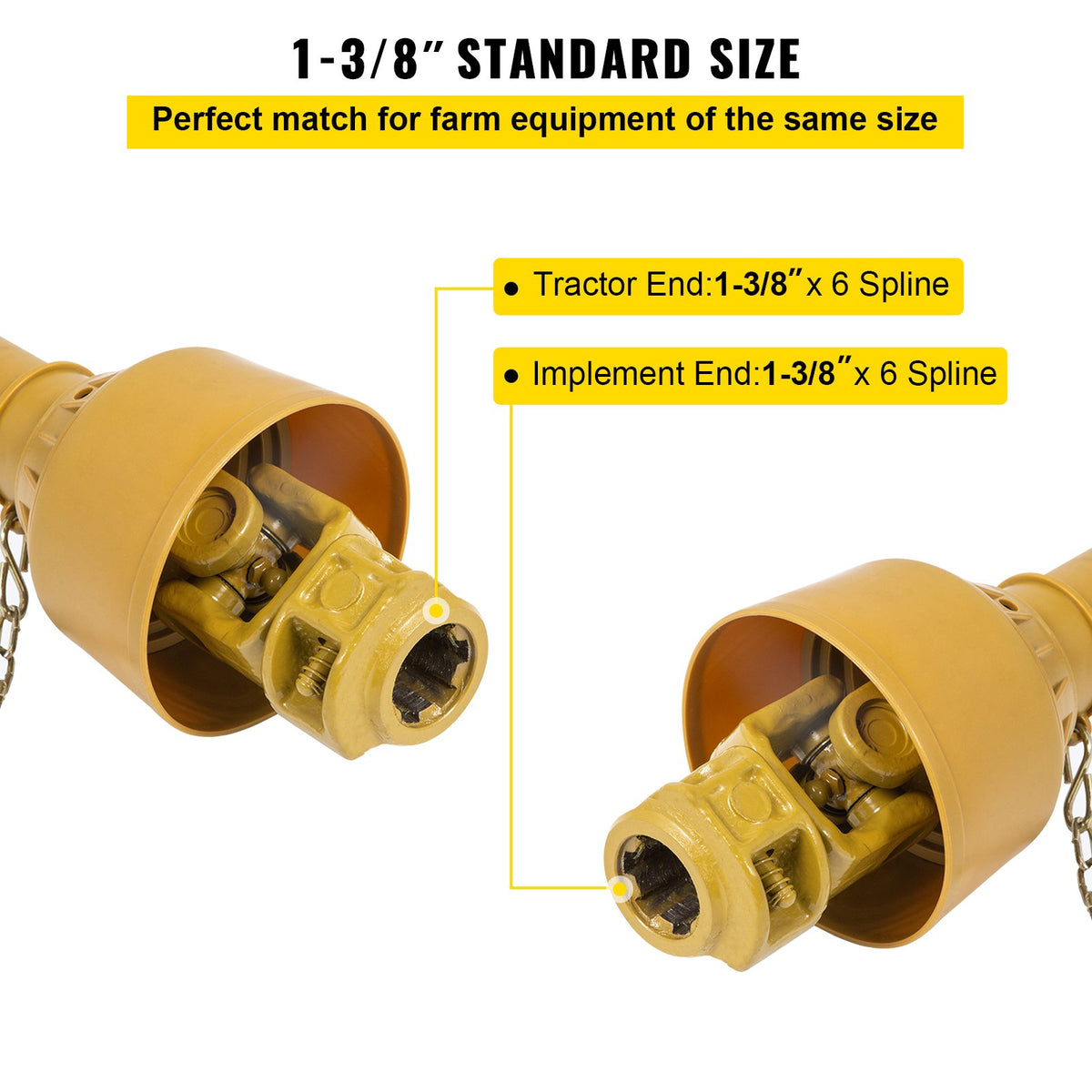

- 1 3/8" X 6 Spline Ends: Constructed with 6-spline tractor end and 6-spline implement end, our brush hog PTO shaft has a standard size of 1-3/8 inches. It can match perfectly with the same size and type of implements and tractors, providing magnificent driving force for your machinery. Your machinery will be running like never before.

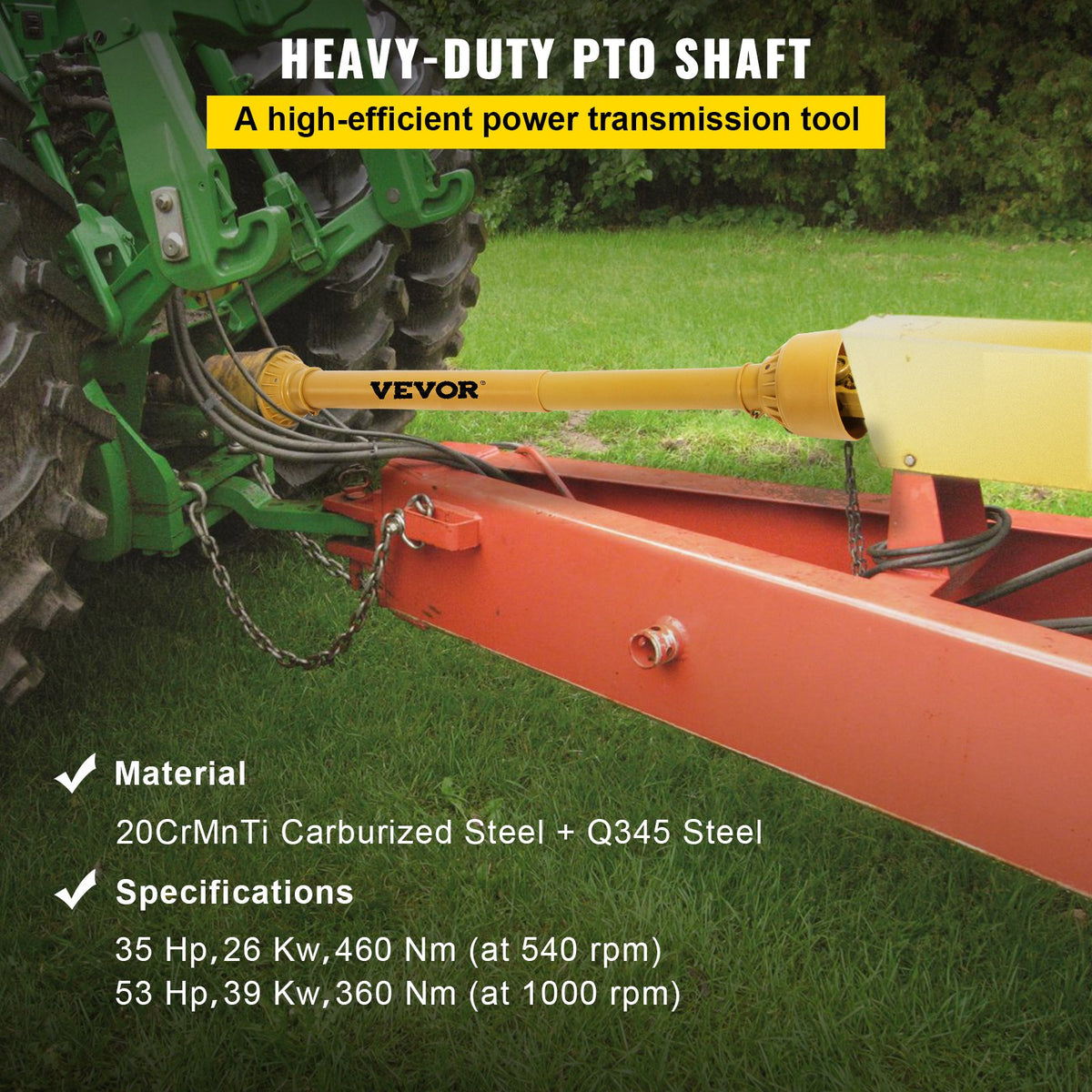

- Adjustable Length: Compressed Length: 39" / 1000 mm; Extended Overall Length: 55" / 1400 mm. The tiller PTO shaft is designed with a telescoping steel tube, a universal joint, and yokes. It has 35 Hp, 26 Kw, and 460 Nm torque at 540 rpm, while at 1000 rpm features 53 Hp, 39 Kw, and 360 Nm torque. It allows two sides of the PTO drive line shaft to spin at different speeds.
- Easy Assembly＆Safer Use: As a high-efficient power transmission tool, our PTO extender shaft can be easily assembled for effortless direct replacement. The security chain and sturdy shield eliminate potential dangers in the transmission process.
- Wide Application: The PTO (Power Take-Off) shaft transfers the power from the tractor to the PTO powered attachment. It is widely used on mowers, wood chippers, rotary tillers, rotary cutters, brush cutters, hush hug, tractors, fertilizer spreaders, and more. Control the speed and power of your machine effectively. Powerful torque conversion and reliability will leave you wishing you got our PTO shaft sooner
