About this item
Key Features

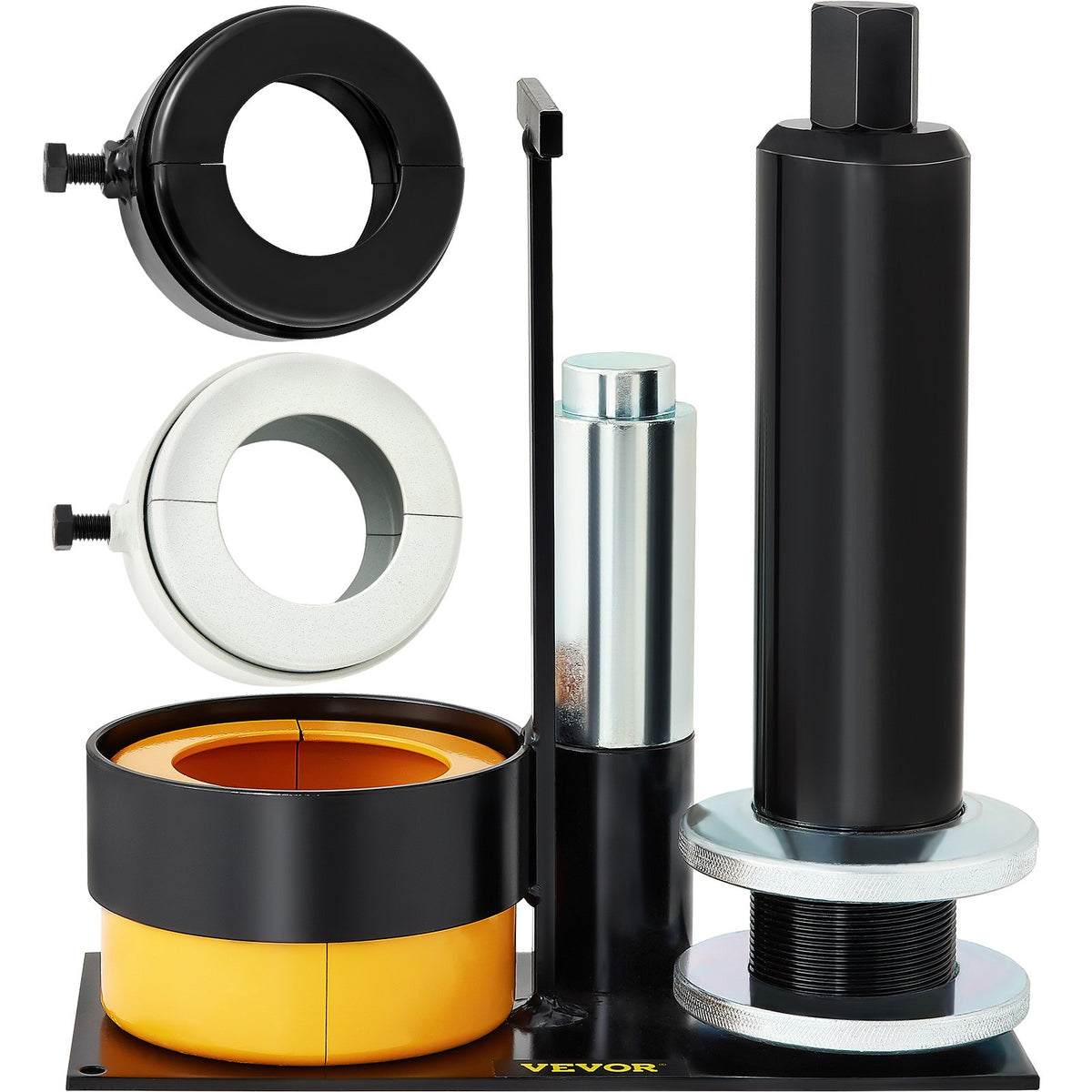

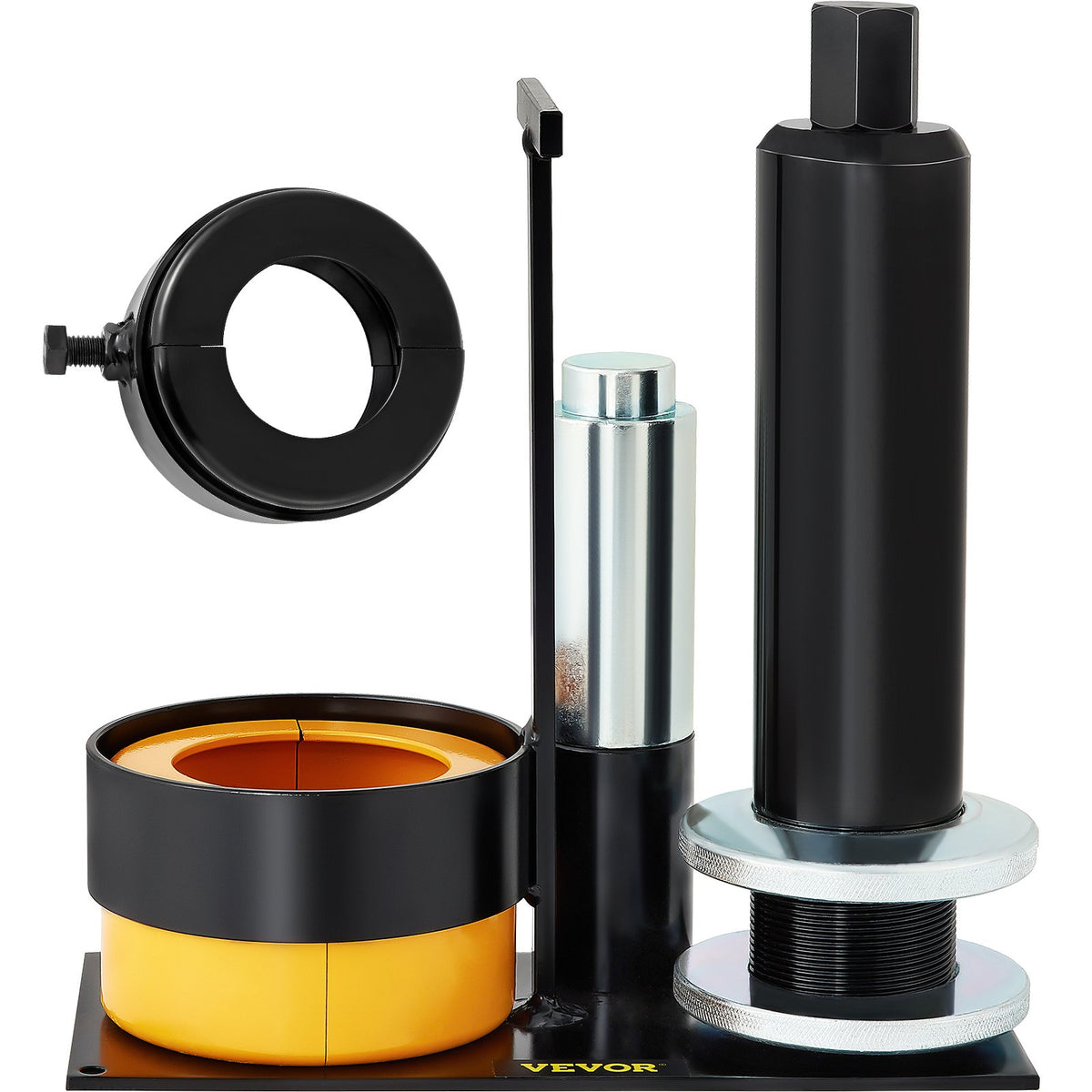

- Three Bearing Puller Tools: This set covers a marine lower bearing carrier puller for Yamaha, Johnson, Evinrude, Honda and Mercury outboards plus two clamshell carrier and pinion bearing pullers for Dana 30, 40, 50, 60, 70, 80 and Ford 10.25 in and 9 in axle bearings.
- Deep Grip Without Damage: The pulling force is spread evenly over the bearing, so the bearing liner and the pinion seal surfaces are not pried or scored while the bearing comes out.
- Built to Last: The jaws, clamshells, screw rod and puller body are made of 45# steel that resists abrasion, corrosion and impact, and the ball bearing head keeps friction low so more force reaches the bearing.
- Simple to Operate: Assemble the puller on the bearing, tighten the adjusting rings and turn the center screw by hand or with an impact gun; no other special tool is needed.
- Wide Application: For lower unit bearing carriers on outboard motors and for carrier and pinion bearings in Dana and Ford axle differentials during gear, bearing and seal replacement.
Specifications
| Brand | VEVOR |
|---|---|
| Product Type | Vehicles & Parts > Vehicle Parts & Accessories > Vehicle Maintenance, Care & Decor > Vehicle Repair & Specialty Tools > Motor Vehicle Clutch Alignment & Removal Tools |
| Material | 45# Steel |
| Type | Marine lower bearing carrier puller for Yamaha, Johnson, Evinrude, Honda and Mercury outboards; clamshell carrier and pinion bearing puller for Dana and Ford axle bearings |
| Model | K06T (marine lower bearing carrier puller), K09T (carrier and pinion bearing puller with 3 clamshells) or K08T (carrier and pinion bearing puller with 2 clamshells) |
| Compatibility | Yamaha, Johnson, Evinrude, Honda and Mercury outboard lower units (K06T); Dana 30, 40, 50, 60, 70, 80 and Ford 10.25 in axle bearings (K09T); Dana 30, 40, 60, 70 and Ford 9 in axle bearings (K08T) |
| Pulling Force | Heavy duty screw rod with a ball bearing head on the K06T; center bolt driven by hand or by an impact gun on the K09T and the K08T |
| Clamshell Diameter | 4.45 in / 11.3 cm (yellow and black) and 5.2 in / 13.2 cm (white) on the K09T; 4.45 in / 11.3 cm (yellow and black) on the K08T |
| Item Size | 21.8 x 3.2 in / 55.3 x 8.15 cm (K06T) or 8.9 x 5 x 11 in / 225 x 127 x 279 mm (K09T and K08T) |
| Item Weight | 8.7 lbs / 3.95 kg (K06T), 32.8 lbs / 14.9 kg (K09T) or 30 lbs / 13.6 kg (K08T) |
| Shipping Weight | 9.5 lbs / 4.3 kg (K06T), 33.1 lbs / 15 kg (K09T) or 24.5 lbs / 11.1 kg (K08T) |
| Package Dimensions | 49 x 12 x 8 cm (K06T), 30 x 17 x 32 cm (K09T) or 30 x 18 x 32 cm (K08T) |
| Package Contents | The K06T ships with the puller, the drive shaft adapter and the adjustable jaws; the K09T and the K08T ship with the main puller body, the plug, the center bolt, the clamshells, the retaining ring, the adjuster rings and a stand |
| Application | Removing lower unit bearing carriers on outboard motors and carrier and pinion bearings in Dana and Ford axle differentials |
| Available Options | Type: 1 Pc Bearing, 2 Pcs Bearing, Lower Bearing Carrier Puller |
