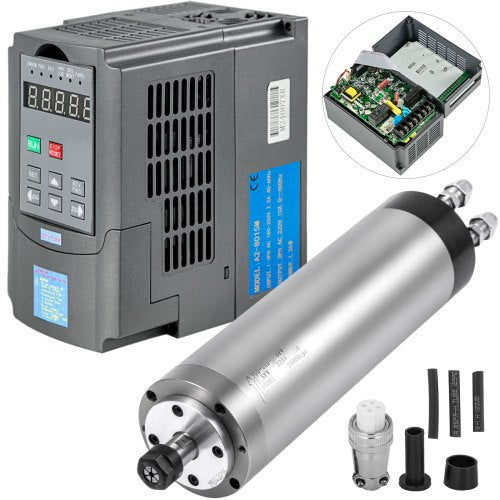

VEVOR 1.5KW Water Cooled Spindle Motor, High-Speed CNC Spindle Motor 4 Bearings 24000RPM 400HZ for Engraving Milling & Grinding Machine
Compare exact SKUs
| SKU | Selection | Specifications | Package contents |
|---|---|---|---|
| 1.5KW水冷电机 | Title: Default Title | Power: 1.5 KW; Voltage: 220V~250V; Frequency: 400 Hz; Speed: 8000-24000 R/min; Runout off: Less than 0.005 mm; Product Dimension: 2.6 x 8.6 in / 6.5 x 21.75 cm; Weight: 8.4 lbs / 3.8 kg | 1 x Water Cooled Spindle Motor |
Details by SKU
1.5KW水冷电机 - Default Title
- Technical Parameters: Spec: φ2.6 x 8.6 in (Diameter: 6.5 cm x Length: 21.75 cm); Power: 1.5 KW; Voltage: 220V~250V; Current: 5A; Collet Size: ER11; Bearings: 4 bearings; Frequency: 400 Hz; Speed: 8000-24000 R/min; Runout off: less than 0.005 mm. The CNC spindle motor is mainly used for engraving machine or used with frequency converter.

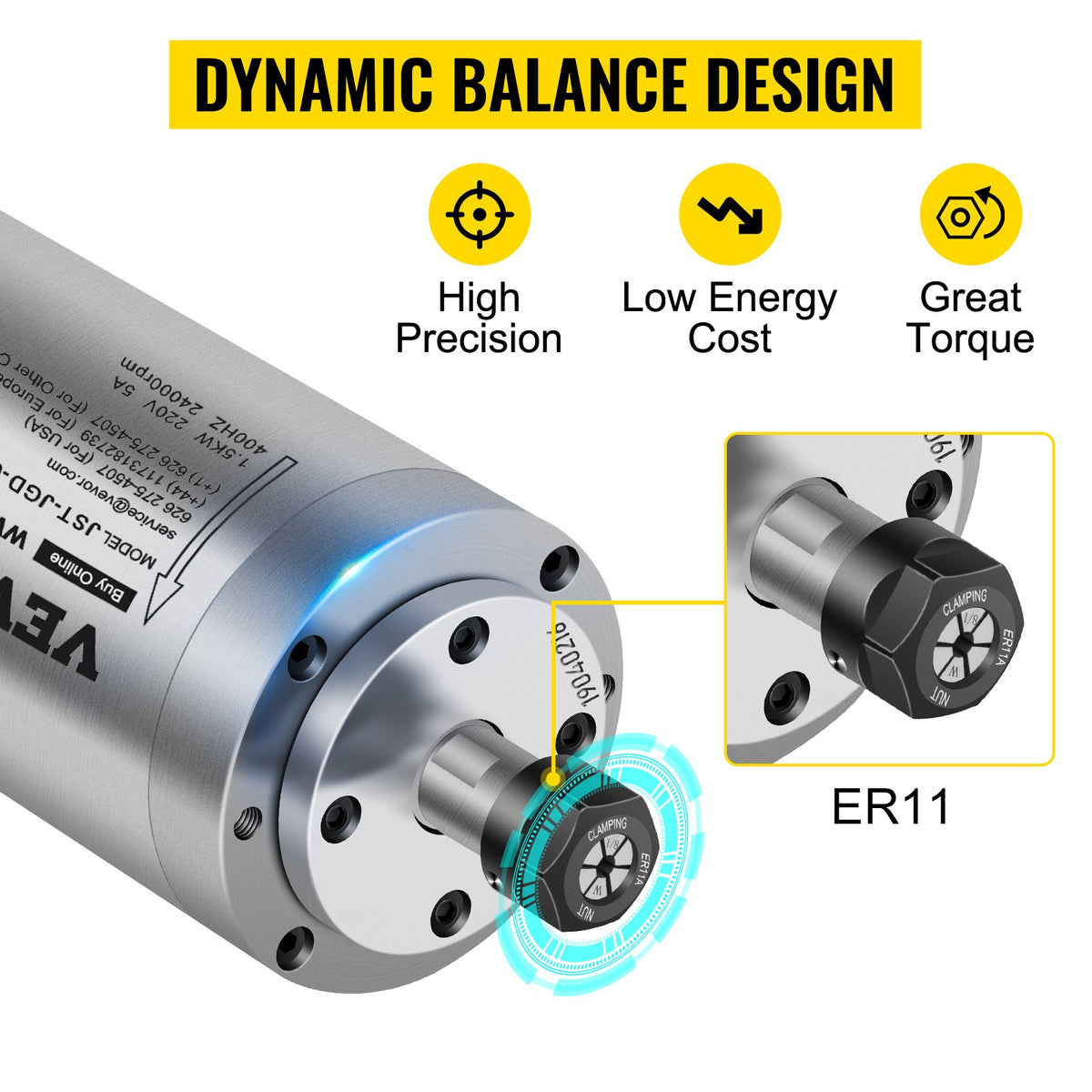

- ER11 Standard Collet: The collet of the cnc spindle is quenched with manganese steel, and the runout is less than 0.005 mm, which has high precision and is not easy to break the knife, increasing the stability of the working process. Dynamic balance technology can effectively reduce noise during use.

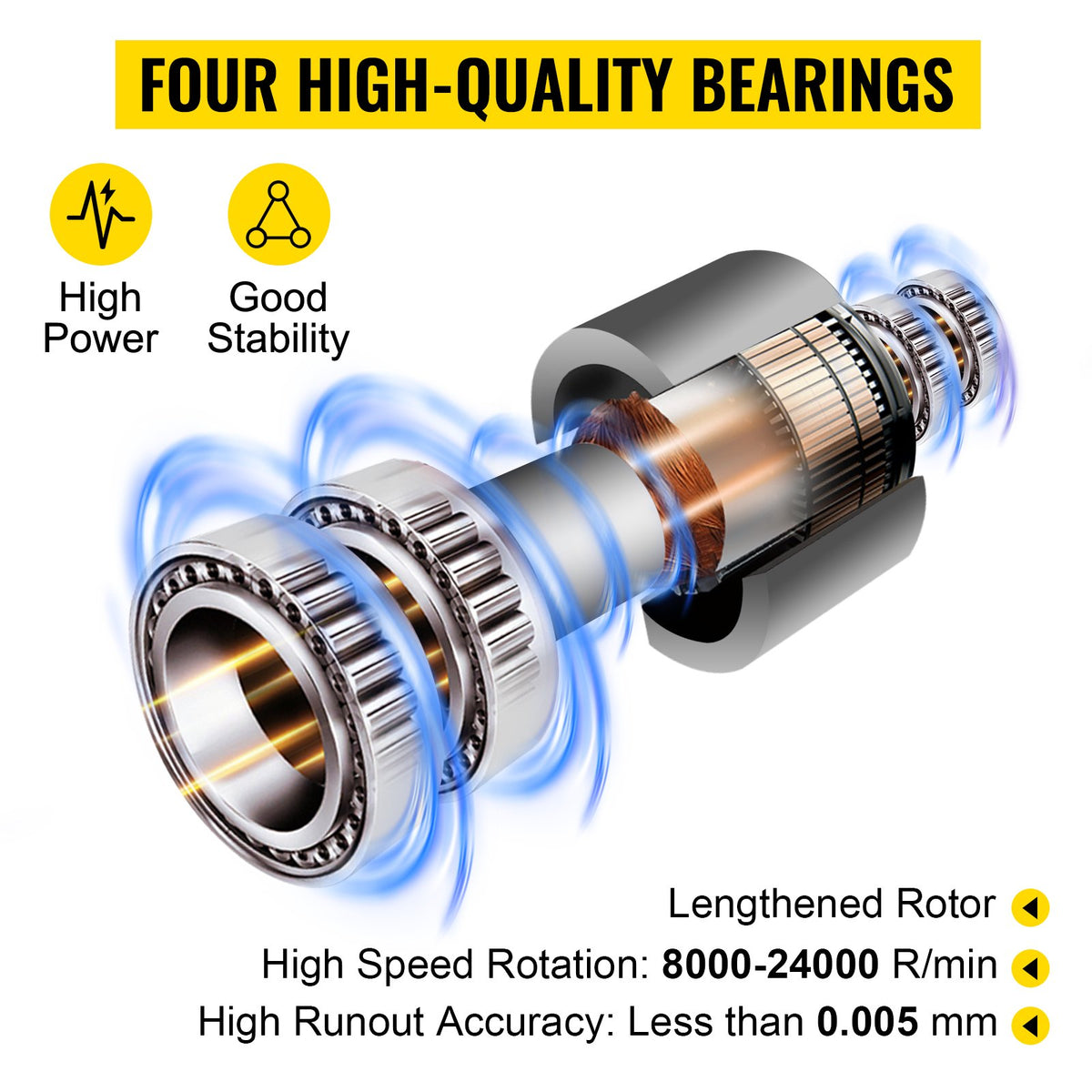

- Powerful Bearing: The water cooled spindle motor adopts imported bearings with high accuracy, precision, and durability. Significantly improve the hardness and anti-rust performance.
- Low Noise & Heat Dissipation: The dynamic balance technology can effectively reduce the noise during use. The scientifically designed water circulation system has a better heat dissipation effect to ensure smooth operation.
- Fine Workmanship: The body of the CNC router spindle is made of high-quality stainless steel, equipped with a pure copper rotor. The upgraded version of the aviation plug can ensure the stability and security of the input power, and the dust cover prevents dust from entering the body.
