How to Install a 29-Inch Wall-Mounted Handrail for 1-3 Steps
A 29-inch wall-mounted handrail can be a practical choice for many compact 1-3 step layouts, but step count alone does not determine fit. The safest approach is to measure the stair run, confirm the available wall space, and make sure the mounting surface can support the rail before drilling.
Will a 29-inch handrail work for 1-3 steps?

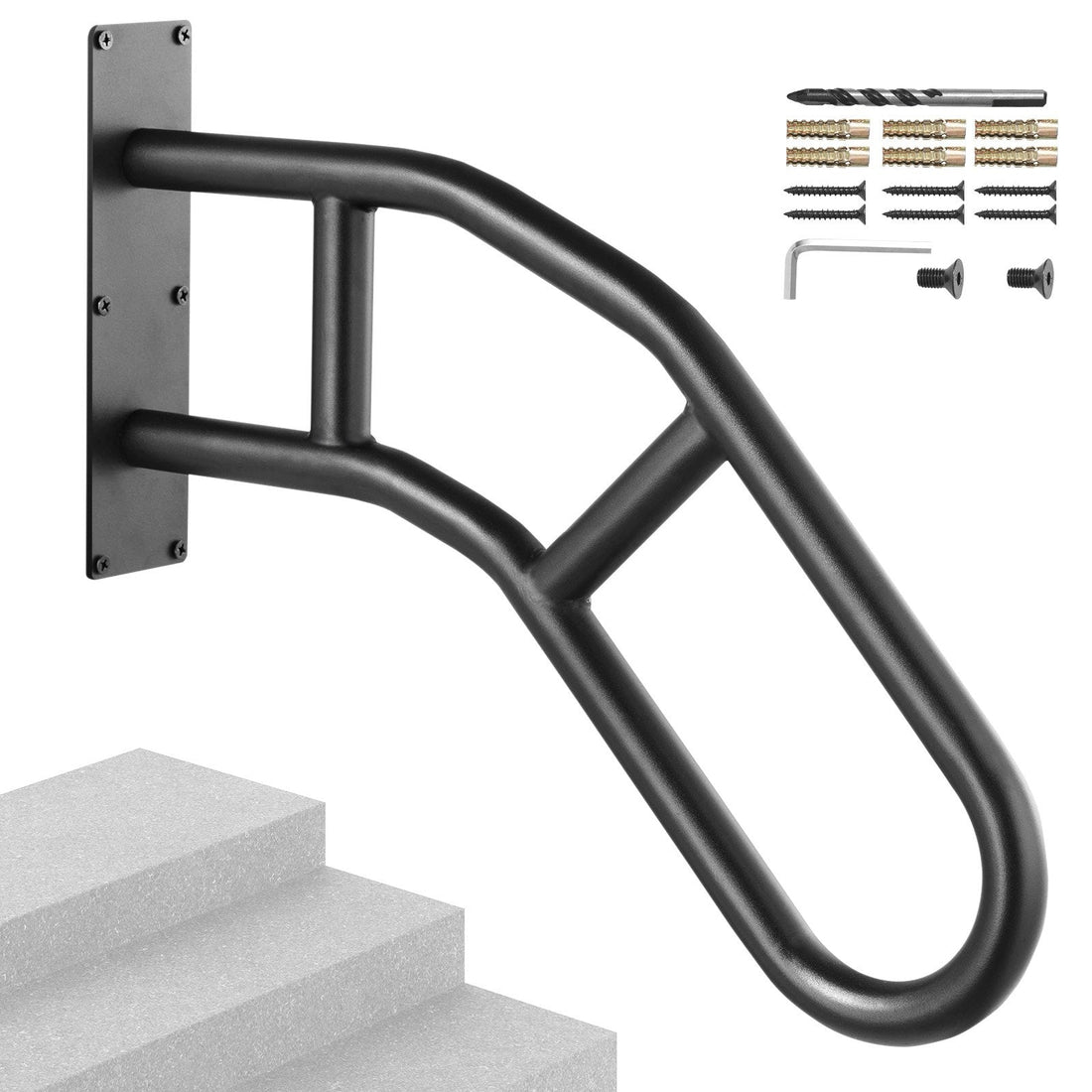

Often, yes. It can suit many short porch, garage, garden, or indoor stair runs, but you should measure the actual installation area first. The VEVOR example used in this guide is carbon steel, matte black, intended for indoor/outdoor use, and rated for up to 530 lb when properly installed on a structurally sound surface.
View the VEVOR 29 in Handrail →Key Takeaways
A 29-inch rail may fit 1-3 steps, but stair run and wall space matter more than step count alone.
The wall, anchors, fasteners, and installation quality all affect the finished setup.
Concrete, masonry, and wood framing require different mounting methods.
Retighten and test all mounting points before regular use.
VEVOR 29-Inch Handrail at a Glance
| Length | 29 in |
|---|---|
| Recommended stair range | 1-3 steps |
| Material | Carbon steel |
| Finish | Matte black |
| Load rating | Up to 530 lb |
| Typical use | Porch, garage, garden, entryway, short indoor steps |
Is a 29-Inch Handrail Suitable for 1-3 Steps?
Short answer: it can be, especially for compact stair runs, porch steps, garage entries, and similar transitions. The key is to measure the actual run of the steps and confirm where the mounting plates will land before drilling.
A 29-inch rail should not be chosen by step count alone. Two stairways with the same number of steps can have different tread depths, rise heights, wall clearances, and mounting positions. Measure first, then compare the available mounting area with the rail dimensions.
What to Measure Before You Install
- Total stair run: Measure from the first step area to the upper landing or final step.
- Wall space: Confirm the full rail and both mounting points fit without hitting trim, doors, or other obstacles.
- Mounting height: Decide where the grip should sit for comfortable use.
- Surface type: Identify concrete, masonry, wood framing, tile over solid backing, or another structural surface.
- Clearance: Leave enough room around the rail for a comfortable hand grip.
Where This Type of Handrail Works Best
A compact wall-mounted rail is most useful where you need an extra handhold but do not need a full freestanding railing system.
How to Install a Wall-Mounted Handrail in 6 Steps
The exact mounting hardware and method depend on the wall material, so always follow the product instructions and use fasteners that are appropriate for the surface.
01 · Choose the mounting position
Hold the handrail against the wall and check that the grip feels comfortable from both the lower and upper step positions.
02 · Mark the mounting holes
Use the mounting plate as a template and mark the hole locations. Check alignment before drilling.
03 · Confirm what is behind the wall
For wood-framed walls, locate structural framing where possible. For concrete or masonry, use anchors and drill bits designed for that material.
04 · Drill and install the anchors
Drill to the correct diameter and depth for the selected hardware and remove loose dust before installing anchors where required.
05 · Tighten the mounting hardware
Secure the rail evenly without damaging the wall surface or deforming the mounting plates.
06 · Test before regular use
Apply controlled pressure in multiple directions and recheck every fastener before regular use.
Concrete vs. Wood Installation
Concrete or Masonry
Concrete and masonry can provide a strong mounting base when compatible anchors are used, holes are drilled to the correct size, and the material is sound rather than cracked or deteriorated.
Wood Framing
For wood walls, fastening into structural framing is preferable to relying on thin wall panels alone. Verify stud or framing locations before installation.
Common Installation Mistakes to Avoid
- Choosing a rail based only on the number of steps without measuring the stair run.
- Mounting into a weak or non-structural surface.
- Using anchors that are not suitable for the wall material.
- Drilling before checking the rail position from both the top and bottom of the stairs.
- Failing to retighten and retest all fasteners after installation.
- Assuming a published load rating applies regardless of how the rail is mounted.
How Much Weight Can the VEVOR 29-Inch Handrail Support?
The product is rated for up to 530 lb. That rating depends on proper installation and a structurally sound mounting surface. The wall, anchors, fasteners, and installation quality all affect the finished setup.
Can It Be Used Outdoors?
Yes. This model is intended for indoor or outdoor use and is commonly suited to porches, garage entries, garden steps, and similar areas. Inspect the mounting points periodically and keep the rail secure.
Quick Buying Checklist
- My stair run is approximately 1-3 steps.
- I have enough wall space for a 29-inch rail.
- The mounting surface is structurally sound.
- I can use anchors or fasteners suited to that surface.
- I have checked the intended grip height and clearance.
VEVOR 29 in Wall-Mounted Handrail for 1-3 Steps
Carbon steel, matte black, designed for short stair runs with up to 530 lb rated support when properly installed.
View Product Details →Frequently Asked Questions
Installation requirements can vary by building type and location. Follow the product instructions and applicable local requirements for your project.
