VEVOR Guide
1/4–7/8 in Tube Bender Guide: Die Sizes, 90° Reverse Bending & Materials
A ratcheting tube bender is useful when you need controlled bends in compact spaces without stepping up to a large bench-mounted machine. This guide explains the 1/4 to 7/8 inch bending range, seven interchangeable dies, 90-degree forward and reverse bending, and the tubing materials listed for this VEVOR kit.
Quick answer

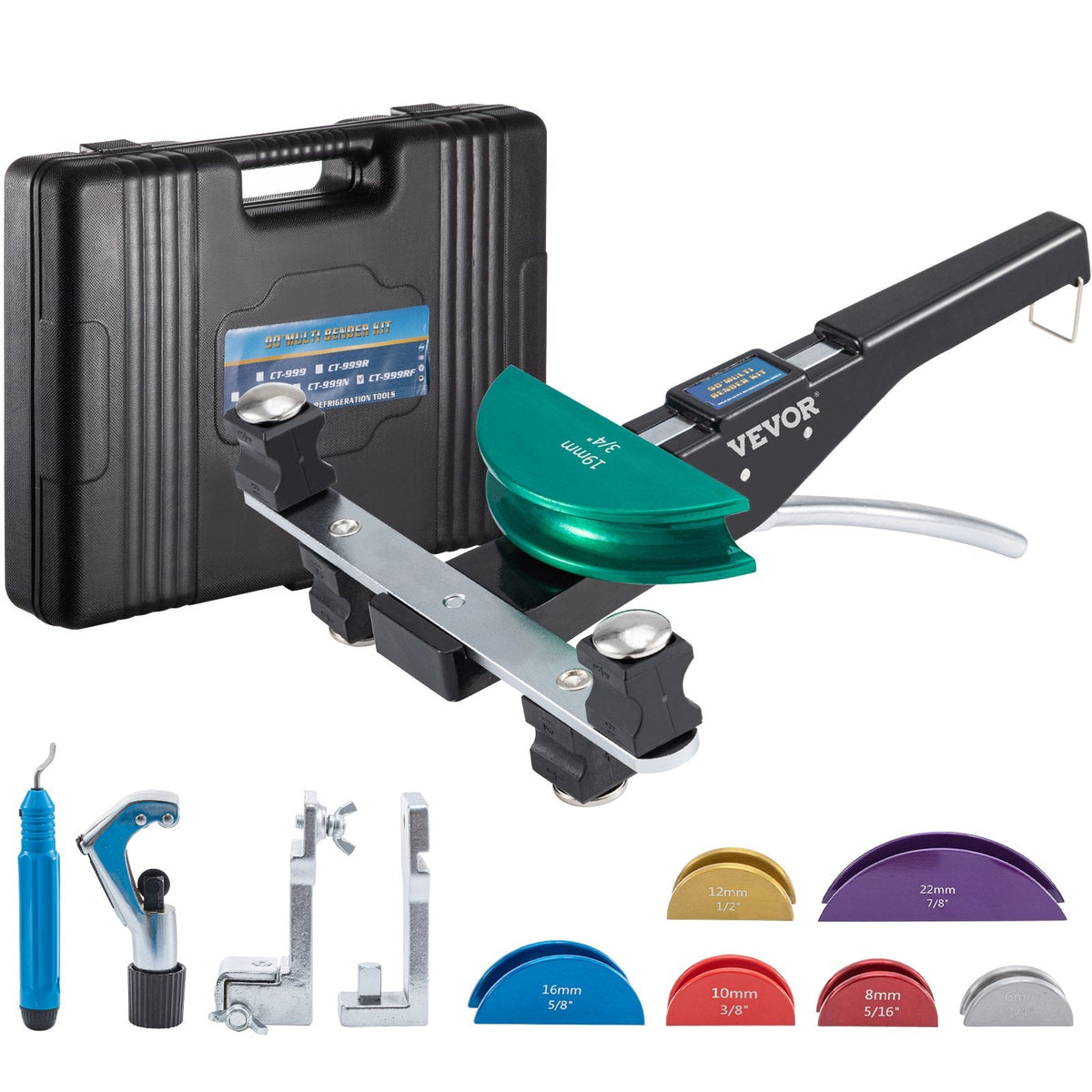

The VEVOR ratcheting tube bender covers tubing from 1/4 in to 7/8 in using 7 interchangeable dies. It is listed for forward and reverse bends up to 90° and for copper, aluminum, and thin-walled steel tubing. Choose it when your tubing diameter falls inside that range and you need a compact manual tool for plumbing, HVAC, refrigeration, floor-heating, or hydraulic work.
What the 1/4–7/8 inch range means
The advertised range describes the outside tube diameters supported by the supplied die set. Instead of trying to form every size with one generic shoe, the kit uses interchangeable bending dies across the 1/4 to 7/8 inch span.
Before bending, match the tube diameter to the correct die. Using the wrong die size can reduce support around the tube and increase the risk of flattening, marking, or creating an uneven bend.
Why seven dies matter
| Feature | What it does | Why it matters |
|---|---|---|
| 7 interchangeable dies | Matches multiple tubing diameters from 1/4 to 7/8 in | Better support than forcing different tubes through one form |
| Ratcheting mechanism | Advances the bend in controlled increments | Useful where long handle travel is limited |
| Forward / reverse bending | Allows bends in either setup direction up to 90° | Helps in confined or awkward installation areas |
What materials can it bend?
The current listing identifies the tool for copper, aluminum, and thin-walled steel tubing. These materials can behave differently under load, so wall thickness, alloy, temper, and tube condition still matter even when the outside diameter is within the listed range.
- Copper: common in plumbing, refrigeration, and HVAC applications.
- Aluminum: lighter and generally easier to form, but surface marking and wall collapse still need attention.
- Thin-walled steel: requires more care because stiffness rises quickly as wall thickness increases.
What does 90° reverse bending mean?
Reverse bending means the tool can be configured so the bend develops in the opposite direction from the standard setup. That matters when a tube is already partially installed or when a wall, enclosure, cabinet, or adjacent line blocks the usual bending direction.
The listed maximum bend angle is 90°. That covers right-angle turns commonly used in HVAC, plumbing, heating, refrigeration, and hydraulic routing.
Before you bend: practical checklist
- Confirm the tubing outside diameter falls between 1/4 and 7/8 inch.
- Select the die that matches the tube diameter.
- Check that the tubing material and wall thickness are appropriate for manual bending.
- Mark the bend location before loading the tube.
- Plan the bend direction before working in a confined area.
- Advance the ratchet progressively instead of forcing the bend in one movement.
- Inspect the bend for flattening, kinking, cracks, or surface damage before installation.
Where this type of bender fits best
This compact ratcheting design is aimed at jobs where portability and access matter more than high-volume production. The listing specifically points to sanitary and heating installations, floor heating, refrigeration and air-conditioning work, and hydraulic systems.
If your project involves tubing larger than 7/8 inch, thick-wall steel, repeated shop production, or structural pipe, a larger manual or powered bender may be more appropriate.
Shop the VEVOR 1/4–7/8 in Ratcheting Tube Bender
Dekuch currently carries the VEVOR ratcheting tube bender in Multicolor and Orange variants, both using the 1/4–7/8 inch bending range.
View Tube BenderFAQ
What size tubing does this VEVOR bender support?
The current listing states a bending range from 1/4 inch to 7/8 inch using seven interchangeable dies.
Can it bend to 90 degrees?
Yes. The product is listed for forward and reverse bending up to 90 degrees.
Can it bend steel tubing?
The listing identifies copper, aluminum, and thin-walled steel tubing as supported applications. Actual suitability still depends on wall thickness, alloy, temper, and project conditions.
Is it designed for tight work areas?
Yes. Its compact ratcheting design is specifically positioned for confined spaces and installations where long handle movement is difficult.
